Location-aware Git remote URL with AWS Route53

You can provide GitLab users with a single remote URL that automatically uses the Geo site closest to them. This means users don’t need to update their Git configuration to take advantage of closer Geo sites as they move.

This is possible because, Git push requests can be automatically redirected (HTTP) or proxied (SSH) from secondary sites to the primary site.

Though these instructions use AWS Route53, other services such as Cloudflare could be used as well.

noteYou can also use a load balancer to distribute web UI or API traffic to multiple Geo secondary sites. Importantly, the primary site cannot yet be included. See the feature request Support putting the primary behind a Geo node load balancer.

Prerequisites

In this example, we have already set up:

  • primary.example.com as a Geo primary site.
  • secondary.example.com as a Geo secondary site.

We will create a git.example.com subdomain that will automatically direct requests:

  • From Europe to the secondary site.
  • From all other locations to the primary site.

In any case, you require:

  • A working GitLab primary site that is accessible at its own address.
  • A working GitLab secondary site.
  • A Route53 Hosted Zone managing your domain.

If you haven’t yet set up a Geo primary site and secondary site, see the Geo setup instructions.

Create a traffic policy

In a Route53 Hosted Zone, traffic policies can be used to set up a variety of routing configurations.

  1. Go to the Route53 dashboard and select Traffic policies.

    Traffic policies

  2. Click the Create traffic policy button.

    Name policy

  3. Fill in the Policy Name field with Single Git Host and click Next.

    Policy diagram

  4. Leave DNS type as A: IP Address in IPv4 format.
  5. Click Connect to… and select Geolocation rule.

    Add geolocation rule

  6. For the first Location, leave it as Default.
  7. Click Connect to… and select New endpoint.
  8. Choose Type value and fill it in with <your **primary** IP address>.
  9. For the second Location, choose Europe.
  10. Click Connect to… and select New endpoint.
  11. Choose Type value and fill it in with <your **secondary** IP address>.

    Add traffic policy endpoints

  12. Click Create traffic policy.

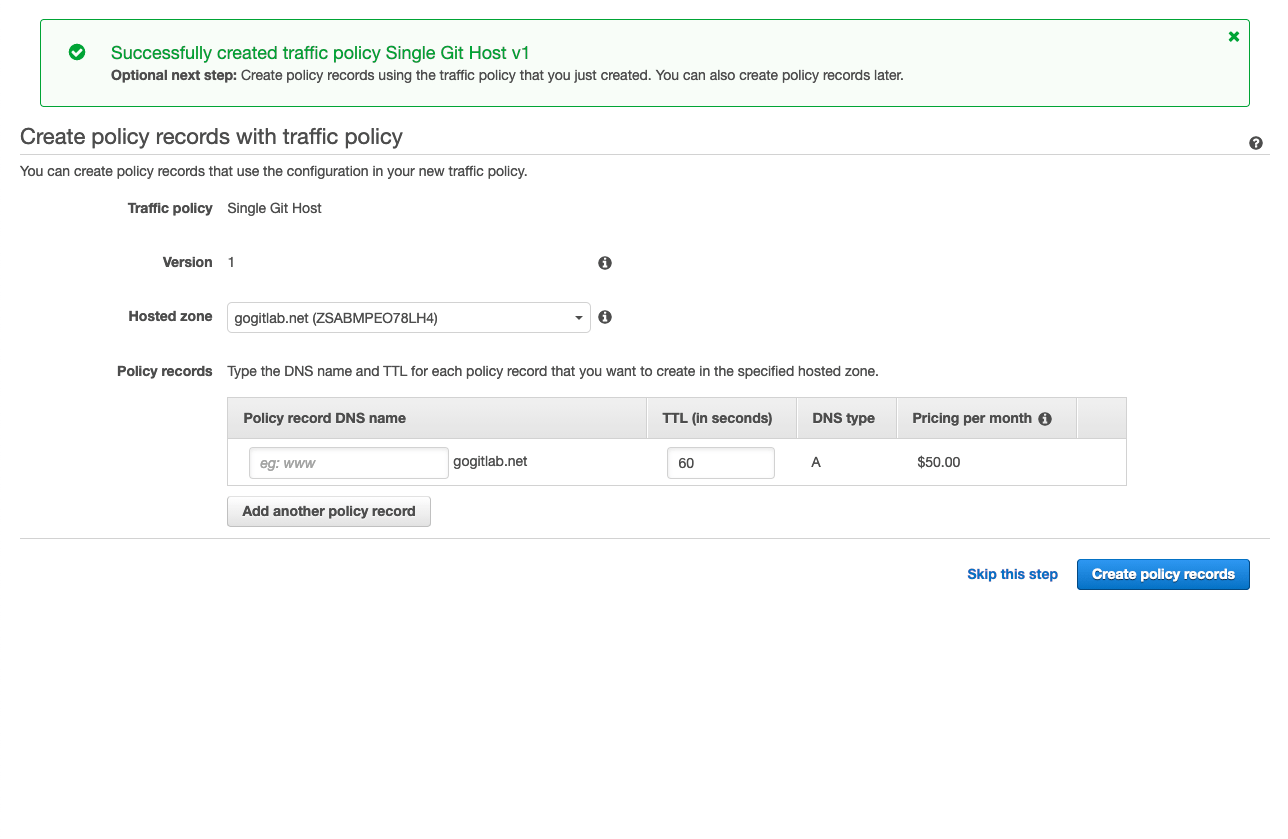

    Create policy records with traffic policy

  13. Fill in Policy record DNS name with git.
  14. Click Create policy records.

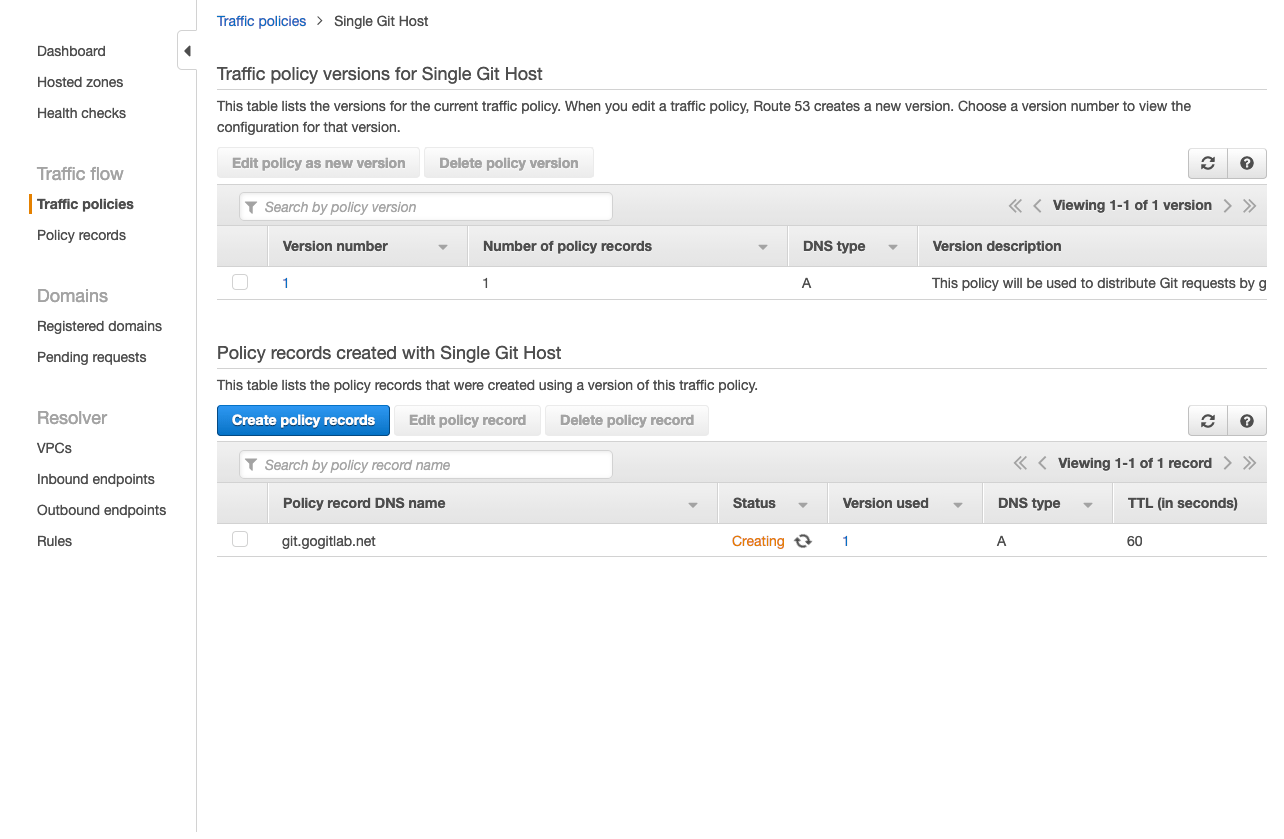

    Created policy record

You have successfully set up a single host, e.g. git.example.com which distributes traffic to your Geo sites by geolocation!

Configure Git clone URLs to use the special Git URL

When a user clones a repository for the first time, they typically copy the Git remote URL from the project page. By default, these SSH and HTTP URLs are based on the external URL of the current host. For example:

  • git@secondary.example.com:group1/project1.git
  • https://secondary.example.com/group1/project1.git

Clone panel

You can customize the:

  • SSH remote URL to use the location-aware git.example.com. To do so, change the SSH remote URL’s host by setting gitlab_rails['gitlab_ssh_host'] in gitlab.rb of web nodes.
  • HTTP remote URL as shown in Custom Git clone URL for HTTP(S).

Example Git request handling behavior

After following the configuration steps above, handling for Git requests is now location aware. For requests:

  • Outside Europe, all requests are directed to the primary site.
  • Within Europe, over:
    • HTTP:
      • git clone http://git.example.com/foo/bar.git is directed to the secondary site.
      • git push is initially directed to the secondary, which automatically redirects to primary.example.com.
    • SSH:
      • git clone git@git.example.com:foo/bar.git is directed to the secondary.
      • git push is initially directed to the secondary, which automatically proxies the request to primary.example.com.
