Scan execution policies

Tier: Ultimate Offering: GitLab.com, Self-managed, GitLab Dedicated
History
  • Group-level security policies introduced in GitLab 15.2.
  • Group-level security policies enabled on GitLab.com in GitLab 15.4.
  • Operational container scanning introduced in GitLab 15.5
  • Support for custom CI variables in the Scan Execution Policies editor introduced in GitLab 16.2.
  • Enforcement of scan execution policies on projects with an existing GitLab CI/CD configuration introduced in GitLab 16.2 with a flag named scan_execution_policy_pipelines. Feature flag scan_execution_policy_pipelines removed in GitLab 16.5.
  • Overriding predefined variables in scan execution policies introduced in GitLab 16.10 with a flag named allow_restricted_variables_at_policy_level. Enabled by default. Feature flag allow_restricted_variables_at_policy_level removed in GitLab 17.5.

Use scan execution policies to enforce security scans, either as part of the pipeline or on a specified schedule. The security scans run with multiple project pipelines if you define the policy at a group or subgroup level.

Scan execution policies are enforced for all applicable projects. For projects without a .gitlab-ci.yml file, or where AutoDevOps is disabled, security policies create the .gitlab-ci.yml file implicitly. This ensures policies enabling execution of secret detection, static analysis, or other scanners that do not require a build in the project, are still able to run and be enforced.

This feature has some overlap with compliance pipelines, as we have not unified the user experience for these two features. For details on the similarities and differences between these features, see Enforce scan execution.

Restrictions

  • You can assign a maximum of five rules to each policy.
  • You can assign a maximum of five scan execution policies to each security policy project.

Jobs

Policy jobs for scans, other than DAST scans, are created in the test stage of the pipeline. If you remove the test stage from the default pipeline, jobs run in the scan-policies stage instead. This stage is injected into the CI/CD pipeline at evaluation time if it doesn’t exist. If the build stage exists, it is injected just after the build stage, otherwise it is injected at the beginning of the pipeline. DAST scans always run in the dast stage. If this stage does not exist, then a dast stage is injected at the end of the pipeline.

To avoid job name conflicts, a hyphen and a number is appended to the job name. The number is unique per policy action.

Scan execution policy editor

Use the scan execution policy editor to create or edit a scan execution policy.

Prerequisites:

  • Only group, subgroup, or project Owners have the permissions to select Security Policy Project.

Once your policy is complete, save it by selecting Configure with a merge request at the bottom of the editor. You are redirected to the merge request on the project’s configured security policy project. If one does not link to your project, a security policy project is automatically created. Existing policies can also be removed from the editor interface by selecting Delete policy at the bottom of the editor.

Most policy changes take effect as soon as the merge request is merged. Any changes that do not go through a merge request and are committed directly to the default branch may require up to 10 minutes before the policy changes take effect.

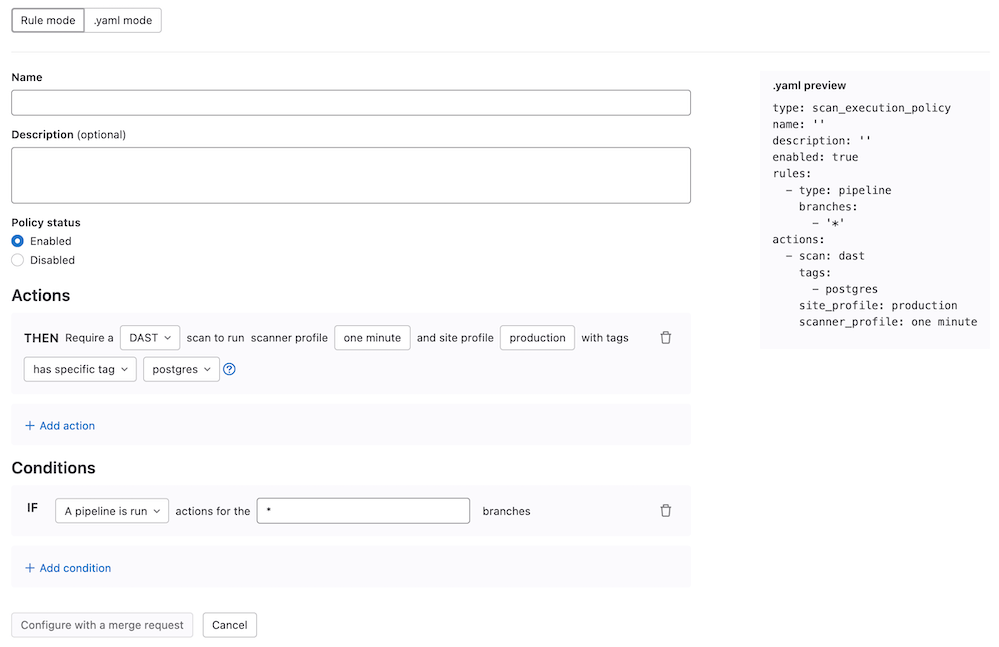

Scan Execution Policy Editor Rule Mode

note
Selection of site and scanner profiles using the rule mode editor for DAST execution policies differs based on whether the policy is being created at the project or group level. For project-level policies the rule mode editor presents a list of profiles to choose from that are already defined in the project. For group-level policies you are required to type in the names of the profiles to use, and to prevent pipeline errors, profiles with matching names must exist in all of the group’s projects.

Scan execution policies schema

The YAML file with scan execution policies consists of an array of objects matching scan execution policy schema nested under the scan_execution_policy key. You can configure a maximum of 5 policies under the scan_execution_policy key. Any other policies configured after the first 5 are not applied.

When you save a new policy, GitLab validates its contents against this JSON schema. If you’re not familiar with how to read JSON schemas, the following sections and tables provide an alternative.

Field Type Required Possible values Description
scan_execution_policy array of scan execution policy true   List of scan execution policies (maximum 5)

Scan execution policy schema

History
  • Introduced in GitLab 17.4 with flags named scan_execution_policy_action_limit (for projects) and scan_execution_policy_action_limit_group (for groups). Disabled by default.
The availability of this feature is controlled by a feature flag. For more information, see the history.
Field Type Required Possible values Description
name string true   Name of the policy. Maximum of 255 characters.
description (optional) string true   Description of the policy.
enabled boolean true true, false Flag to enable (true) or disable (false) the policy.
rules array of rules true   List of rules that the policy applies.
actions array of actions true   List of actions that the policy enforces. Limited to a maximum of 10 in GitLab 18.0 and later.

pipeline rule type

History
  • The branch_type field was introduced in GitLab 16.1 with a flag named security_policies_branch_type. Generally available in GitLab 16.2. Feature flag removed.
  • The branch_exceptions field was introduced in GitLab 16.3 with a flag named security_policies_branch_exceptions. Generally available in GitLab 16.5. Feature flag removed.

This rule enforces the defined actions whenever the pipeline runs for a selected branch.

Field Type Required Possible values Description
type string true pipeline The rule’s type.
branches 1 array of string true if branch_type field does not exist * or the branch’s name The branch the given policy applies to (supports wildcard).
branch_type 1 string true if branches field does not exist default, protected or all The types of branches the given policy applies to.
branch_exceptions array of string false Names of branches Branches to exclude from this rule.
  1. You must specify only one of branches or branch_type.

schedule rule type

History
  • The branch_type field was introduced in GitLab 16.1 with a flag named security_policies_branch_type. Generally available in GitLab 16.2. Feature flag removed.
  • The branch_exceptions field was introduced in GitLab 16.3 with a flag named security_policies_branch_exceptions. Generally available in GitLab 16.5. Feature flag removed.
caution
In GitLab 16.1 and earlier, you should not use direct transfer with scheduled scan execution policies. If using direct transfer, first upgrade to GitLab 16.2 and ensure security policy bots are enabled in the projects you are enforcing.

Use the schedule rule type to run security scanners on a schedule.

A scheduled pipeline:

  • Runs only the scanners defined in the policy, not the jobs defined in the project’s .gitlab-ci.yml file.
  • Runs according to the schedule defined in the cadence field.
  • Runs under a security_policy_bot user account in the project, with the Guest role and permissions to create pipelines and read the repository’s content from a CI/CD job. This account is created when the policy is linked to a group or project.
Field Type Required Possible values Description
type string true schedule The rule’s type.
branches 1 array of string true if either branch_type or agents fields does not exist * or the branch’s name The branch the given policy applies to (supports wildcard).
branch_type 1 string true if either branches or agents fields does not exist default, protected or all The types of branches the given policy applies to.
branch_exceptions array of string false Names of branches Branches to exclude from this rule.
cadence string true Cron expression (for example, 0 0 * * *) A whitespace-separated string containing five fields that represents the scheduled time.
timezone string false Time zone identifier (for example, America/New_York) Time zone to apply to the cadence. Value must be an IANA Time Zone Database identifier.
agents 1 object true if either branch_type or branches fields do not exists   The name of the GitLab agents where Operational Container Scanning runs. The object key is the name of the Kubernetes agent configured for your project in GitLab.
  1. You must specify only one of branches, branch_type, or agents.

Cadence

Use the cadence field to schedule when you want the policy’s actions to run. The cadence field uses cron syntax, but with some restrictions:

  • Only the following types of cron syntax are supported:
    • A daily cadence of once per hour around specified time, for example: 0 18 * * *
    • A weekly cadence of once per week on a specified day and around specified time, for example: 0 13 * * 0
  • Use of the comma (,), hyphens (-), or step operators (/) are not supported for minutes and hours. Any scheduled pipeline using these characters is skipped.

Consider the following when choosing a value for the cadence field:

  • Timing is based on UTC for GitLab SaaS and on the GitLab host’s system time for GitLab self-managed. When testing new policies, it may appear pipelines are not running properly when in fact they are scheduled in your server’s time zone.
  • A scheduled pipeline starts around the time mentioned in the policy, when the resources become available to create it. In other words, the pipeline may not begin precisely at the timing specified in the policy.

When using the schedule rule type with the agents field:

  • The GitLab agent for Kubernetes checks every 30 seconds to see if there is an applicable policy. When a policy is found, the scans are executed according to the cadence defined.
  • The cron expression is evaluated using the system time of the Kubernetes-agent pod.

When using the schedule rule type with the branches field:

  • The cron worker runs on 15 minute intervals and starts any pipelines that were scheduled to run during the previous 15 minutes. Therefore, scheduled pipelines may run with an offset of up to 15 minutes.
  • If a policy is enforced on a large number of projects or branches, the policy is processed in batches, and may take some time to create all pipelines.

A diagram showing how scheduled security scans are processed and executed with potential delays.

agent schema

Use this schema to define agents objects in the schedule rule type.

Field Type Required Description
namespaces array of string true The namespace that is scanned. If empty, all namespaces are scanned.

Policy example

- name: Enforce Container Scanning in cluster connected through my-gitlab-agent for default and kube-system namespaces
  enabled: true
  rules:
  - type: schedule
    cadence: '0 10 * * *'
    agents:
      <agent-name>:
        namespaces:
        - 'default'
        - 'kube-system'
  actions:
  - scan: container_scanning

The keys for a schedule rule are:

  • cadence (required): a Cron expression for when the scans are run.
  • agents:<agent-name> (required): The name of the agent to use for scanning.
  • agents:<agent-name>:namespaces (optional): The Kubernetes namespaces to scan. If omitted, all namespaces are scanned.

scan action type

History
  • Scan Execution Policies variable precedence was changed in GitLab 16.7 with a flag named security_policies_variables_precedence. Enabled by default. Feature flag removed in GitLab 16.8.
  • Selection of security templates for given action (for projects) was introduced in GitLab 17.1 with feature flag named scan_execution_policies_with_latest_templates. Disabled by default.
  • Selection of security templates for given action (for groups) was introduced in GitLab 17.2 with feature flag named scan_execution_policies_with_latest_templates_group. Disabled by default.
  • Selection of security templates for given action (for projects and groups) was enabled on self-managed, and GitLab Dedicated (1, 2) in GitLab 17.2.
  • Selection of security templates for given action (for projects and groups) was generally available in GitLab 17.3. Feature flags scan_execution_policies_with_latest_templates and scan_execution_policies_with_latest_templates_group removed.

This action executes the selected scan with additional parameters when conditions for at least one rule in the defined policy are met.

Field Type Possible values Description
scan string sast, sast_iac, dast, secret_detection, container_scanning, dependency_scanning The action’s type.
site_profile string Name of the selected DAST site profile. The DAST site profile to execute the DAST scan. This field should only be set if scan type is dast.
scanner_profile string or null Name of the selected DAST scanner profile. The DAST scanner profile to execute the DAST scan. This field should only be set if scan type is dast.
variables object   A set of CI variables, supplied as an array of key: value pairs, to apply and enforce for the selected scan. The key is the variable name, with its value provided as a string. This parameter supports any variable that the GitLab CI job supports for the specified scan.
tags array of string   A list of runner tags for the policy. The policy jobs are run by runner with the specified tags.
template string default, latest CI/CD template edition to be enforced. The latest edition may introduce breaking changes.
scan_settings object   A set of scan settings, supplied as an array of key: value pairs, to apply and enforce for the selected scan. The key is the setting name, with its value provided as a boolean or string. This parameter supports the settings defined in scan settings.
note
If you have Merge Request Pipelines enabled for your project, you must select template: latest in your policy for each enforced scan. Using the latest template is crucial for compatibility with Merge Request Pipelines and allows you to take full advantage of GitLab security features. For more information on using security scanning tools with Merge Request Pipelines, please refer to our security scanning documentation.

Scanner behavior

Some scanners behave differently in a scan action than they do in a regular CI/CD pipeline-based scan.

  • Static Application Security Testing (SAST): Runs only if the repository contains files supported by SAST).
  • Secret detection:
    • Only rules with the default ruleset are supported. Custom rulesets are not supported. Instead, you can configure a remote configuration file and set the SECRET_DETECTION_RULESET_GIT_REFERENCE variable.
    • For scheduled scan execution policies, secret detection by default runs first in historic mode (SECRET_DETECTION_HISTORIC_SCAN = true). All subsequent scheduled scans run in default mode with SECRET_DETECTION_LOG_OPTIONS set to the commit range between last run and current SHA. You can override this behavior by specifying CI/CD variables in the scan execution policy. For more information, see Full history pipeline secret detection.
    • For triggered scan execution policies, secret detection works just like regular scan configured manually in the .gitlab-ci.yml.
  • Container scanning: A scan that is configured for the pipeline rule type ignores the agent defined in the agents object. The agents object is only considered for schedule rule types. An agent with a name provided in the agents object must be created and configured for the project.

DAST profiles

The following requirements apply when enforcing Dynamic Application Security Testing (DAST):

  • For every project in the policy’s scope the specified site profile and scanner profile must exist. If these are not available, the policy is not applied and a job with an error message is created instead.
  • When a DAST site profile or scanner profile is named in an enabled scan execution policy, the profile cannot be modified or deleted. To edit or delete the profile, you must first set the policy to Disabled in the policy editor or set enabled: false in the YAML mode.
  • When configuring policies with a scheduled DAST scan, the author of the commit in the security policy project’s repository must have access to the scanner and site profiles. Otherwise, the scan is not scheduled successfully.

Scan settings

The following settings are supported by the scan_settings parameter:

Setting Type Required Possible values Default Description
ignore_default_before_after_script boolean false true, false false Specifies whether to exclude any default before_script and after_script definitions in the pipeline configuration from the scan job.

CI/CD variables

Variables defined in a scan execution policy follow the standard CI/CD variable precedence.

Preconfigured values are used for the following CI/CD variables in any project on which a scan execution policy is enforced. Their values can be overridden, but only if they are declared in a policy. They cannot be overridden by group or project CI/CD variables:

DS_EXCLUDED_PATHS: spec, test, tests, tmp
SAST_EXCLUDED_PATHS: spec, test, tests, tmp
SECRET_DETECTION_EXCLUDED_PATHS: ''
SECRET_DETECTION_HISTORIC_SCAN: false
SAST_EXCLUDED_ANALYZERS: ''
DS_EXCLUDED_ANALYZERS: ''

In GitLab 16.9 and earlier:

  • If the CI/CD variables suffixed _EXCLUDED_PATHS were declared in a policy, their values could be overridden by group or project CI/CD variables.
  • If the CI/CD variables suffixed _EXCLUDED_ANALYZERS were declared in a policy, their values were ignored, regardless of where they were defined: policy, group, or project.

Scope security policies

History

Security policy enforcement depends first on establishing a link between:

  • The group, subgroup, or project on which you want to enforce policies
  • The security policy project that contains the policies.

For example, if you are linking policies to a group, a group owner must create the link to the security policy project. Then, all policies in the security policy project are inherited by all projects in the group.

You scope security policies by setting the scopes in the policy.yml file to:

  • Include only projects with an applied compliance framework by using the compliance framework’s ID. To include projects, use policy_scope.compliance_frameworks.id to specify IDs of compliance frameworks that are applied to the projects.
  • Include or exclude selected projects from enforcement by using the project’s ID.
  • Include selected groups. Optionally use this with the projects object to exclude selected projects.

Policy scope schema

A policy scope must conform to this schema.

Field Type Required Possible values Description
policy_scope object false compliance_frameworks, projects, groups Scopes the policy based on compliance framework labels, projects, or groups you define.

policy_scope scope type

Policy scopes are one of two types.

Field Type Possible values Description
compliance_frameworks array   List of IDs of the compliance frameworks in scope of enforcement, in an array of objects with key id.
projects object including, excluding Use excluding: or including: then list the IDs of the projects you wish to include or exclude, in an array of objects with key id.
groups object including Use including: then list the IDs of the groups you wish to include, in an array of objects with key id.

Example policy.yml with security policy scopes

In this example, the security policy:

  • Includes any project with compliance frameworks with an ID of either 2 or 11 applied to them.
  • Excludes projects with an ID of either 24 or 27.
---
scan_execution_policy:
- name: Enforce DAST in every release pipeline
  description: This policy enforces pipeline configuration to have a job with DAST scan for release branches
  enabled: true
  rules:
  - type: pipeline
    branches:
    - release/*
  actions:
  - scan: dast
    scanner_profile: Scanner Profile A
    site_profile: Site Profile B
  policy_scope:
    compliance_frameworks:
      - id: 2
      - id: 11
- name: Enforce Secret Detection and Container Scanning in every default branch pipeline
  description: This policy enforces pipeline configuration to have a job with Secret Detection and Container Scanning scans for the default branch
  enabled: true
  rules:
  - type: pipeline
    branches:
    - main
  actions:
  - scan: secret_detection
  - scan: sast
    variables:
      SAST_EXCLUDED_ANALYZERS: brakeman
  policy_scope:
    projects:
      excluding:
        - id: 24
        - id: 27

Example security policy project

You can use this example in a .gitlab/security-policies/policy.yml file stored in a security policy project:

---
scan_execution_policy:
- name: Enforce DAST in every release pipeline
  description: This policy enforces pipeline configuration to have a job with DAST scan for release branches
  enabled: true
  rules:
  - type: pipeline
    branches:
    - release/*
  actions:
  - scan: dast
    scanner_profile: Scanner Profile A
    site_profile: Site Profile B
- name: Enforce DAST and secret detection scans every 10 minutes
  description: This policy enforces DAST and secret detection scans to run every 10 minutes
  enabled: true
  rules:
  - type: schedule
    branches:
    - main
    cadence: "*/10 * * * *"
  actions:
  - scan: dast
    scanner_profile: Scanner Profile C
    site_profile: Site Profile D
  - scan: secret_detection
    scan_settings:
      ignore_default_before_after_script: true
- name: Enforce Secret Detection and Container Scanning in every default branch pipeline
  description: This policy enforces pipeline configuration to have a job with Secret Detection and Container Scanning scans for the default branch
  enabled: true
  rules:
  - type: pipeline
    branches:
    - main
  actions:
  - scan: secret_detection
  - scan: sast
    variables:
      SAST_EXCLUDED_ANALYZERS: brakeman
  - scan: container_scanning

In this example:

  • For every pipeline executed on branches that match the release/* wildcard (for example, branch release/v1.2.1)
    • DAST scans run with Scanner Profile A and Site Profile B.
  • DAST and secret detection scans run every 10 minutes. The DAST scan runs with Scanner Profile C and Site Profile D.
  • Secret detection, container scanning, and SAST scans run for every pipeline executed on the main branch. The SAST scan runs with the SAST_EXCLUDED_ANALYZER variable set to "brakeman".

Example for scan execution policy editor

You can use this example in the YAML mode of the scan execution policy editor. It corresponds to a single object from the previous example.

name: Enforce Secret Detection and Container Scanning in every default branch pipeline
description: This policy enforces pipeline configuration to have a job with Secret Detection and Container Scanning scans for the default branch
enabled: true
rules:
  - type: pipeline
    branches:
      - main
actions:
  - scan: secret_detection
  - scan: container_scanning

Avoiding duplicate scans

Scan execution policies can cause the same type of scanner to run more than once if developers include scan jobs in the project’s .gitlab-ci.yml file. This behavior is intentional as scanners can run more than once with different variables and settings. For example, a developer may want to try running a SAST scan with different variables than the one enforced by the security and compliance team. In this case, two SAST jobs run in the pipeline, one with the developer’s variables and one with the security and compliance team’s variables.

If you want to avoid running duplicate scans, you can either remove the scans from the project’s .gitlab-ci.yml file or disable your local jobs by setting SAST_DISABLED: "true". Disabling jobs this way does not prevent the security jobs defined by scan execution policies from running.

Experimental features

Status: Experiment has ended

This experiment has concluded and will not continue. After receiving feedback within this experiment, we will be focusing our efforts on a new policy type for enforcement of custom CI. The experiment will be removed in 17.3.

Learn more about the pipeline execution policy.
